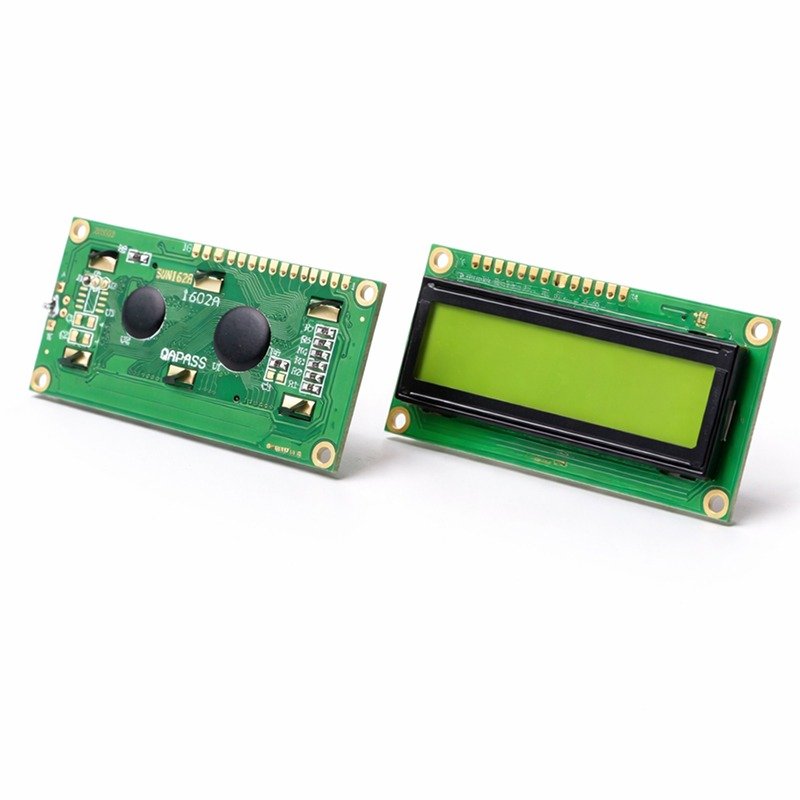

16×2 LCD Display (Green Backlight) – 1602 Character LCD Module

The 16×2 LCD Display with Green Backlight, also known as the 1602 character LCD, is one of the most widely used display modules in Arduino, embedded systems, IoT devices, robotics, and educational electronics projects. This display can show 16 characters per line across 2 lines, making it ideal for presenting text-based information such as sensor values, system status, menus, messages, and debugging output.

With its green backlight and black characters, the 16×2 LCD display offers excellent readability in both indoor and low-light environments. It is based on the industry-standard HD44780 LCD controller, which is supported by almost every microcontroller platform and development environment.

🔍 Key Features of 16×2 LCD Display (Green Backlight)

• 16 characters × 2 lines display

• Bright green backlight for high visibility

• Black character display

• Based on HD44780 compatible controller

• Supports 4-bit and 8-bit parallel interface

• Low power consumption

• Stable and reliable performance

• Wide operating voltage range

• Long lifespan and durable construction

• Easy to interface with Arduino, Raspberry Pi, STM32

• Ideal for beginners and professionals

⚙️ How the 16×2 LCD Display Works

The 16×2 LCD Display is a character-based liquid crystal display, meaning it shows predefined characters rather than free-form graphics. Each character is displayed using a 5×8 dot matrix, allowing letters, numbers, and symbols to appear clearly.

The display is controlled using either 4-bit or 8-bit parallel communication, along with control pins such as RS (Register Select) and E (Enable). Most users prefer 4-bit mode, which reduces the number of GPIO pins required while maintaining full functionality.

Thanks to the HD44780 controller, programming the display is simple using widely available libraries such as LiquidCrystal in Arduino.

📊 Technical Specifications

🔌 Pin Configuration

A typical 16×2 LCD display includes the following pins:

1. VSS – Ground

2. VDD – +5V Power

3. V0 – Contrast Adjustment

4. RS – Register Select

5. RW – Read / Write

6. E – Enable
   7–14. D0–D7 – Data Lines

7. A – Backlight +

8. K – Backlight −

A 10K potentiometer is usually used on the contrast pin for best visibility.

🧩 Compatibility & Integration

The 16×2 LCD Display (Green Backlight) is fully compatible with:

• Arduino UNO / Nano / Mega

• Raspberry Pi (via GPIO or I2C backpack)

• STM32 microcontrollers

• ESP32 / ESP8266 (with level considerations)

• PIC and AVR microcontrollers

• Embedded Linux systems

It also works seamlessly with I2C LCD backpack modules, which reduce wiring to just 4 pins (VCC, GND, SDA, SCL).

🧪 Common Applications

This LCD module is widely used in:

• Arduino and microcontroller projects

• Sensor value display (temperature, humidity, distance)

• IoT device interfaces

• Robotics control panels

• Industrial monitoring systems

• Power supply displays

• Embedded system debugging

• Educational and training kits

• DIY electronics projects

Its simplicity and reliability make it a go-to choice for text-based displays.

🎓 Ideal for Education & Learning

The 16×2 LCD Display with Green Backlight is extensively used in:

• Engineering colleges and universities

• Embedded systems and microcontroller labs

• Arduino and robotics workshops

• STEM education programs

• Student mini and final-year projects

It helps learners understand digital I/O control, display interfacing, and user-interface basics.

⚠️ Usage Tips & Best Practices

• Adjust contrast using a potentiometer

• Use 4-bit mode to save GPIO pins

• Avoid applying voltage without proper wiring

• Use an I2C backpack for cleaner connections

• Do not exceed rated voltage

• Secure the display to avoid mechanical stress

📦 Package Includes

• 1 × 16×2 LCD Display (Green Backlight)

✅ Why Buy from INFYNIQS

• Genuine and quality-tested LCD modules

• Ideal for DIY, education & industrial use

• Bulk and institutional supply available

• Trusted electronics components marketplace
