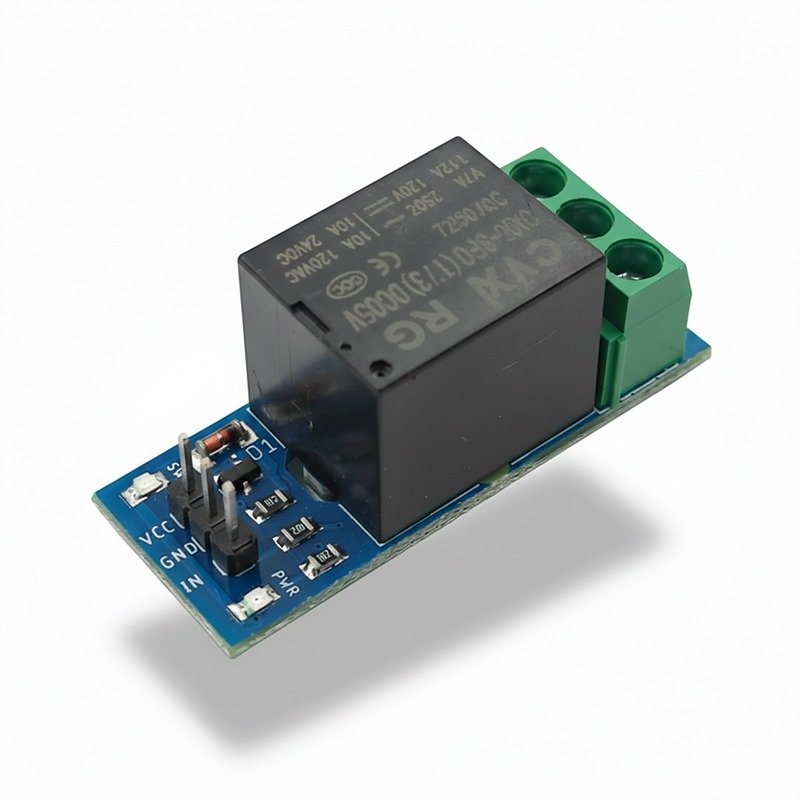

5V 10A Relay Module for Arduino, ESP32 & Automation Projects
The 5V 10A Relay Module is a high-quality single-channel relay board designed to control high-voltage AC or DC loads using low-voltage microcontrollers such as Arduino, ESP8266, ESP32, Raspberry Pi, and other development boards. With a 5V control signal and 10A switching capacity, this relay module is ideal for home automation, robotics, IoT systems, industrial control, and DIY electronics projects.
This relay board allows safe switching of high-power appliances while keeping your microcontroller electrically isolated from high-voltage circuits. It is widely used in automation systems where low-power digital signals are required to control larger loads.
🔍 Key Features of 5V 10A Relay Module
-
Operating voltage: 5V DC
-
Switching capacity: 10A
-
Single-channel relay
-
Compatible with Arduino & ESP32
-
Opto-isolation (variant dependent)
-
LED status indicator
-
Screw terminal output
-
Easy 3-pin control interface
-
High reliability and durability
-
Suitable for AC and DC load control
⚙️ How the 5V 10A Relay Module Works
The 5V 10A Relay Module works by using a small 5V signal from a microcontroller to energize the internal relay coil. When activated:
-
The relay coil becomes magnetized.
-
Internal contacts switch position.
-
The connected load circuit is turned ON or OFF.
This allows safe control of devices such as:
-
Lights
-
Fans
-
Pumps
-
Motors
-
AC appliances
-
Heaters
-
Industrial equipment
The relay module provides isolation between the low-voltage control side and high-voltage load side, ensuring safety in automation systems.
📊 Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | 5V 10A Relay Module |
| Relay Type | Single Channel |
| Operating Voltage | 5V DC |
| Trigger Type | Low/High (variant dependent) |
| Max Switching Current | 10A |
| Max Switching Voltage | 250V AC / 30V DC (typical) |
| Control Interface | VCC, GND, IN |
| Indicator LED | Yes |
| Mounting Type | PCB |
| Condition | Brand New |
| Quality | High Reliability |
(Exact ratings may vary slightly depending on manufacturer.)
🔌 Pin Configuration
The typical control pins include:
-
VCC – 5V power supply
-
GND – Ground
-
IN – Control signal input
The output side includes:
-
COM (Common)
-
NO (Normally Open)
-
NC (Normally Closed)
This allows flexible wiring for normally open or normally closed configurations.
🧩 Compatibility & Integration
The 5V 10A Relay Module is fully compatible with:
-
Arduino UNO / Nano / Mega
-
ESP8266 / ESP32
-
Raspberry Pi
-
STM32 boards
-
IoT controllers
-
PLC systems
It can be easily integrated into home automation panels and DIY control systems.
🏠 Common Applications
The 5V 10A Relay Module is widely used in:
-
Home automation systems
-
Smart lighting control
-
IoT remote switching
-
Motor control systems
-
Industrial automation
-
Water pump controllers
-
Security systems
-
Smart agriculture systems
-
Robotics power switching
It is especially useful when low-voltage devices need to control high-voltage appliances.
🔒 Safety & Usage Tips
When using the 5V 10A Relay Module, follow these safety precautions:
-
Do not exceed 10A load rating
-
Use proper insulation for AC wiring
-
Ensure secure screw terminal connections
-
Keep high-voltage wiring separate from control wiring
-
Disconnect power before installation
-
Use protective casing for safety
Proper installation ensures safe and long-term operation.
🎓 Ideal for Education & DIY Projects
This relay module is perfect for:
-
Engineering college projects
-
IoT workshops
-
Robotics competitions
-
Automation training
-
DIY smart home builds
It helps learners understand:
-
Electromechanical switching
-
High-voltage control
-
Microcontroller interfacing
-
Basic automation concepts
📦 Package Includes
-
1 × 5V 10A Relay Module (Single Channel)
✅ Why Buy from INFYNIQS
-
Quality-tested relay modules
-
Reliable and durable performance
-
Affordable pricing
-
Bulk supply available
-
Trusted electronics components marketplace
