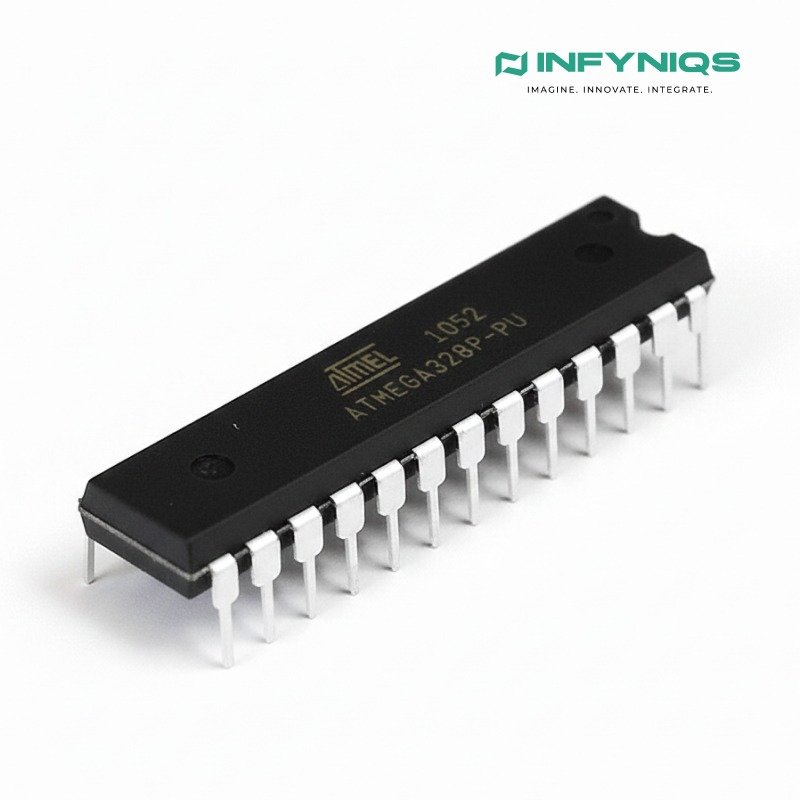

ATmega328P-U PDIP-28 Microcontroller | High-Performance 8-bit AVR MCU

Description

🔍 Key Features of ATmega328P-U PDIP-28 Microcontroller

• 131 powerful instructions, most executing in a single clock cycle

• Up to 20 MIPS throughput at 20 MHz

• 32 × 8 general-purpose working registers

• Fully static operation (0 Hz to maximum frequency)

• On-chip 2-cycle hardware multiplier

• High endurance Flash and EEPROM memory

• In-System Programming (ISP) support

• True read-while-write operation

• Programmable bootloader support

• Multiple timers, counters, and RTC support

• Low-power operation with sleep modes

• PDIP-28 package for easy handling and prototyping

⚙️ Architecture & Performance

The ATmega328P-U PDIP-28 Microcontroller is built on the AVR enhanced RISC architecture, allowing most instructions to execute in a single clock cycle. This architecture enables high performance while maintaining low power consumption.

With a maximum throughput of 20 MIPS at 20 MHz, the microcontroller delivers fast response times for real-time control, signal processing, and communication-based applications.

📊 Technical Specifications

🧠 Memory & Boot Features

The ATmega328P-U PDIP-28 Microcontroller includes:

• Optional boot code section with independent lock bits

• In-System Programming (ISP) using on-chip boot program

• True read-while-write operation for efficient firmware updates

• Programming lock bits for software security and IP protection

These features make the microcontroller suitable for both development and production environments.

⏱️ Timers, Counters & RTC

This microcontroller provides a rich set of timing peripherals:

• Two 8-bit timer/counters with separate prescalers and compare modes

• One 16-bit timer/counter with prescaler, compare, and capture modes

• Real-Time Counter (RTC) with separate oscillator

These peripherals enable precise timing control for PWM generation, motor control, event counting, and real-time clock applications.

🧑‍💻 Programming & Development Support

The ATmega328P-U PDIP-28 Microcontroller supports multiple development tools and environments:

• Arduino IDE

• AVR-GCC

• Atmel Studio / Microchip Studio

• ISP programmers (USBasp, AVRISP, etc.)

Its massive ecosystem of libraries and community support makes development fast and beginner-friendly.

🧪 Common Applications

The ATmega328P-U PDIP-28 Microcontroller is widely used in:

• Arduino UNO and compatible boards

• Embedded control systems

• Robotics and automation

• IoT sensor nodes

• Motor control projects

• LED control and display systems

• Data logging devices

• Educational electronics labs

• DIY electronics and prototyping

🎓 Ideal for Education & Training

This microcontroller is extensively used in:

• Engineering colleges and universities

• Polytechnic and ITI labs

• Arduino and embedded systems workshops

• STEM education programs

• Student innovation and final-year projects

It is perfect for learning microcontroller architecture, embedded C programming, timers, interrupts, and peripheral interfacing.

⚠️ Usage Tips & Best Practices

• Use an external crystal for accurate timing when required

• Avoid exceeding maximum voltage ratings

• Use ISP programming for faster development cycles

• Enable sleep modes for low-power applications

• Use decoupling capacitors for stable operation
