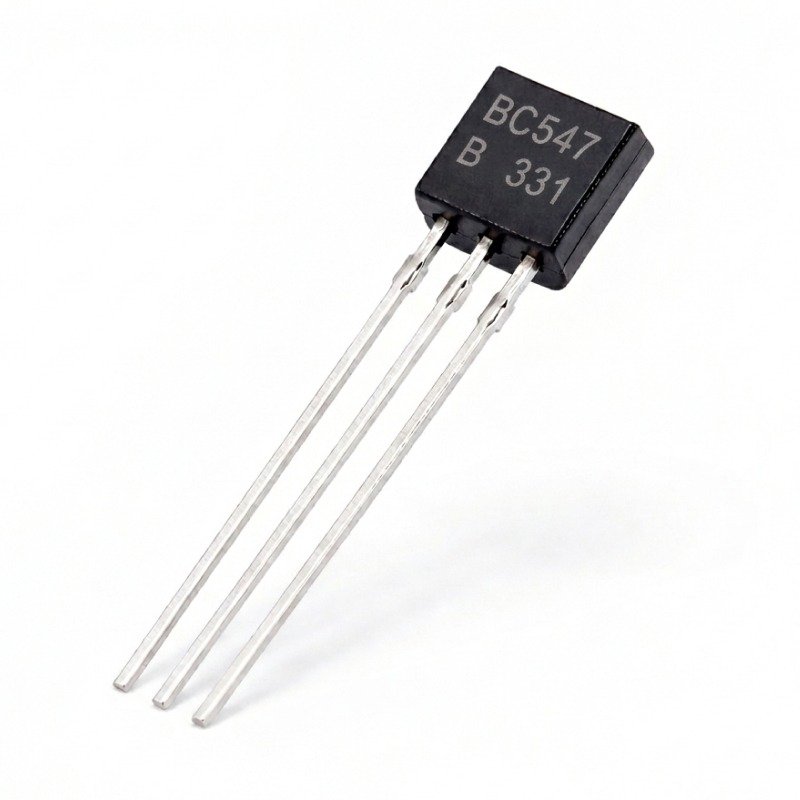

BC547 NPN Transistor TO-92 General Purpose Amplifier Transistor

Description

The BC547 NPN Transistor is a widely used general-purpose bipolar junction transistor (BJT) designed for signal amplification and switching applications in electronic circuits. It comes in a compact TO-92 package, making it suitable for breadboard experiments, PCB circuits, Arduino projects, and DIY electronics.

Because of its reliable performance, low cost, and versatile functionality, the BC547 transistor is one of the most commonly used transistors in electronics engineering and educational projects.

The BC547 NPN Transistor is capable of amplifying small signals and controlling larger electrical loads, making it ideal for audio circuits, sensor circuits, switching circuits, and microcontroller applications.

It is widely used by electronics engineers, hobbyists, students, and circuit designers when building low-power electronic systems.

---

🔧 Key Features

• NPN bipolar junction transistor

• Compact TO-92 package

• Suitable for amplification and switching

• High current gain (hFE)

• Reliable and stable performance

• Easy to use in breadboard circuits

• Compatible with microcontrollers

• Low cost and widely available

• Ideal for educational electronics projects

• Durable semiconductor design

---

⚙️ How the BC547 Transistor Works

The BC547 NPN transistor operates as a semiconductor device that can amplify signals or function as an electronic switch.

It contains three terminals:

• Collector (C)

• Base (B)

• Emitter (E)

When a small current flows into the base, it allows a larger current to flow between the collector and emitter.

This behavior allows the BC547 transistor to perform two primary functions.

Signal Amplification

The transistor increases weak signals, which is useful in audio amplifier circuits and signal processing circuits.

Electronic Switching

It can turn devices ON or OFF in circuits, making it useful for relay drivers, LED control circuits, and digital switching applications.

---

📊 Technical Specifications

(Specifications may vary slightly depending on manufacturer.)

---

🔌 Pin Configuration

When the flat side of the BC547 transistor faces you, the pin arrangement is:

1. Collector (C)

2. Base (B)

3. Emitter (E)

Correct orientation is important when assembling circuits.

---

🔍 Applications

The BC547 NPN Transistor is widely used in various electronics applications such as:

• Audio amplifier circuits

• Signal amplification circuits

• Switching circuits

• LED driver circuits

• Relay driver circuits

• Sensor interface circuits

• Arduino and microcontroller projects

• DIY electronics kits

• Robotics control circuits

• Educational electronics experiments

Because of its flexibility, it is considered one of the most essential components in electronics design.

---

🧩 Compatibility

The BC547 transistor can easily work with many electronic systems including:

• Arduino UNO / Nano / Mega

• ESP8266 / ESP32 boards

• Raspberry Pi circuits

• Sensor modules

• Relay modules

• LED circuits

• Analog and digital circuits

It can be used in both breadboard prototypes and PCB designs.

---

🎓 Ideal for Learning Electronics

The BC547 NPN Transistor is commonly used in:

• Engineering college laboratories

• Electronics training institutes

• Arduino beginner projects

• Robotics learning kits

• STEM education programs

Students use BC547 to understand:

• Transistor switching circuits

• Amplifier circuit design

• Analog electronics fundamentals

• Microcontroller interfacing

---

⚠️ Usage Tips

• Always use a base resistor in circuits

• Verify pin configuration before soldering

• Avoid exceeding maximum voltage ratings

• Prevent overheating while soldering

• Use proper circuit protection when necessary

Following these guidelines ensures reliable and long-term operation.
