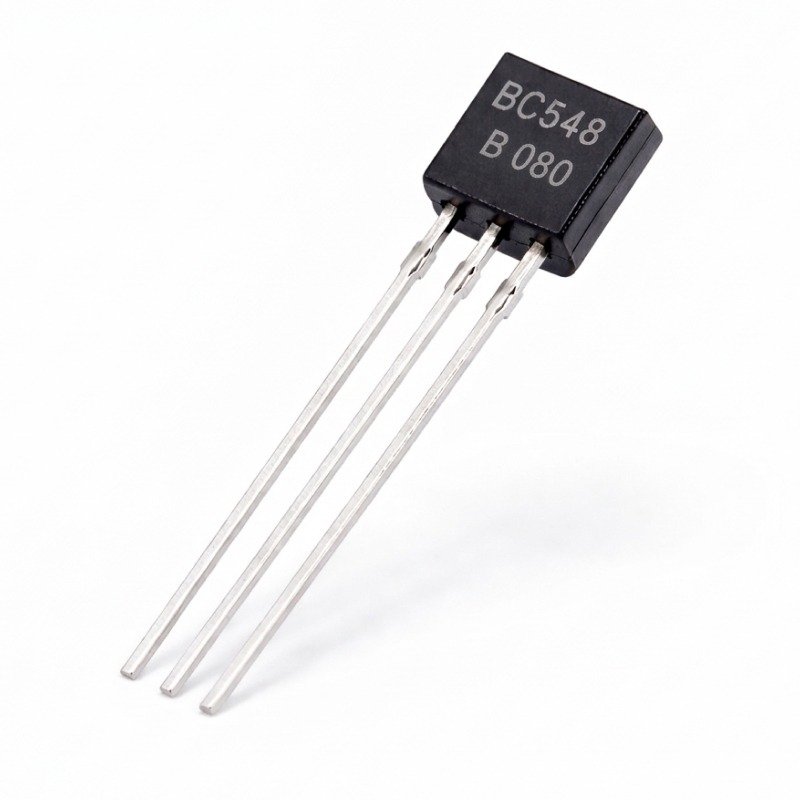

BC548 NPN Transistor TO-92 General Purpose Amplifier Transistor

Description

The BC548 NPN Transistor is a widely used general-purpose bipolar junction transistor (BJT) designed for signal amplification and switching applications in electronic circuits. It comes in a compact TO-92 package, making it suitable for breadboards, PCB circuits, and electronic prototyping.

The BC548 transistor is commonly used in audio amplifiers, switching circuits, signal processing circuits, sensor interfaces, and microcontroller projects. Because of its reliable performance and low cost, it is one of the most popular transistors used in electronics education and hobby electronics.

With its ability to control a large current using a small base current, the BC548 NPN transistor works as both an amplifier and an electronic switch. This makes it useful for controlling LEDs, relays, and other small electronic loads.

---

🔧 Key Features

• NPN bipolar junction transistor

• Compact TO-92 package

• Suitable for signal amplification

• Ideal for switching applications

• High current gain (hFE)

• Reliable and stable performance

• Easy integration with breadboards and PCBs

• Compatible with microcontroller circuits

• Widely used in DIY electronics projects

• Low cost and easy availability

---

⚙️ How the BC548 Transistor Works

The BC548 NPN transistor functions as a semiconductor device that can amplify electrical signals or act as an electronic switch.

It has three terminals:

• Collector (C)

• Base (B)

• Emitter (E)

When a small current flows into the base, it allows a larger current to flow from the collector to the emitter. This property allows the transistor to control electronic circuits.

Amplifier Mode

The BC548 transistor increases the strength of weak electrical signals.

Switching Mode

It can turn electrical devices ON or OFF in circuits.

Because of these functions, BC548 is commonly used in analog and digital electronics circuits.

---

📊 Technical Specifications

(Specifications may slightly vary depending on manufacturer batch.)

---

🔌 Pin Configuration

When the flat side of the BC548 transistor faces you, the pins are arranged as:

1. Collector (C)

2. Base (B)

3. Emitter (E)

Proper pin orientation is important for correct circuit operation.

---

🔍 Applications

The BC548 NPN Transistor is widely used in many electronics applications including:

• Audio amplifier circuits

• Signal amplification circuits

• Switching circuits

• Sensor interface circuits

• Arduino electronics projects

• Low power control circuits

• Relay driver circuits

• LED driver circuits

• DIY electronics kits

• Educational electronics experiments

Its versatility makes it a common component in analog and digital circuit design.

---

🧩 Compatibility

The BC548 transistor works with many electronic components and platforms including:

• Arduino development boards

• ESP8266 / ESP32 modules

• Microcontroller circuits

• Sensor modules

• Relay modules

• LED circuits

• Audio amplifier circuits

It can easily be integrated into breadboard prototypes and PCB designs.

---

🎓 Ideal for Learning Electronics

The BC548 transistor is widely used in:

• Engineering college labs

• Electronics training courses

• STEM learning kits

• Arduino beginner projects

• Robotics workshops

Students often use BC548 to learn:

• Transistor switching circuits

• Amplifier circuits

• Electronic signal control

• Analog electronics concepts

---

⚠️ Usage Tips

• Always use a base resistor when connecting to microcontrollers

• Check correct pin configuration before soldering

• Do not exceed voltage and current ratings

• Avoid overheating during soldering

• Use proper circuit protection where required

Following these precautions ensures reliable operation.
