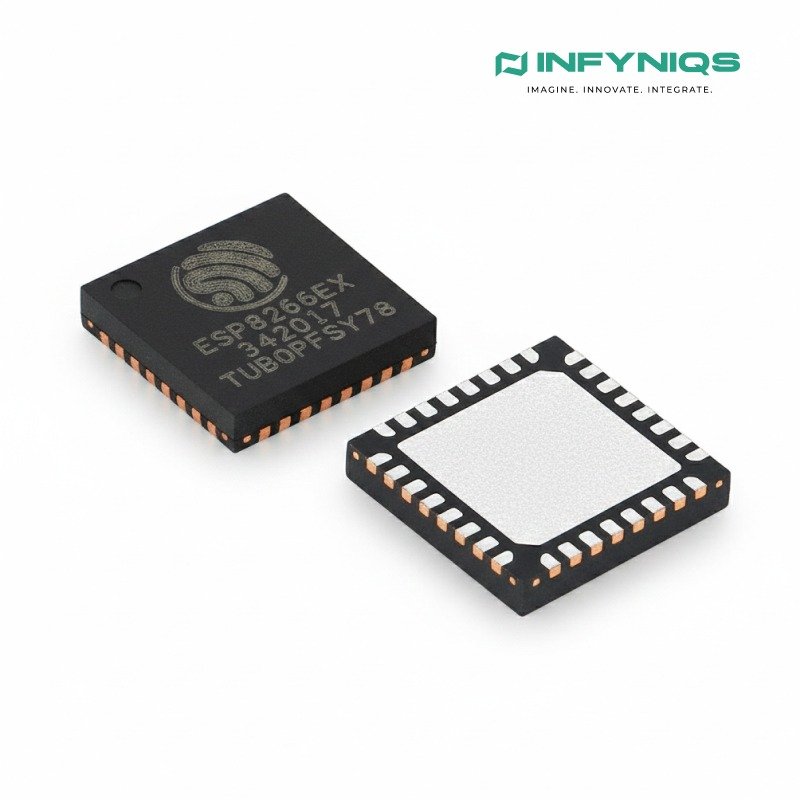

ESP8266EX Wi-Fi SoC | 2.4GHz 32-bit MCU QFN-32 for IoT Applications

Description

🔍 Key Features of ESP8266EX Wi-Fi SoC

• Single-core 32-bit MCU optimized for IoT applications

• Integrated 2.4GHz Wi-Fi (802.11 b/g/n)

• Compact QFN-32 package

• Supports UART, SPI, I2C, SDIO, GPIO, ADC, PWM

• Low power consumption with multiple sleep modes

• Integrated TCP/IP protocol stack

• High RF performance with reliable wireless connectivity

• Supports station, soft-AP, and station+AP modes

• Suitable for smart devices and embedded Wi-Fi products

⚙️ How the ESP8266EX Wi-Fi SoC Works

The ESP8266EX Wi-Fi SoC integrates a 32-bit microcontroller core with a full Wi-Fi networking stack. This allows the chip to function either as a standalone application processor or as a Wi-Fi network co-processor controlled by another MCU.

The SoC communicates with external peripherals using standard digital interfaces such as UART, SPI, and I2C. Developers can write firmware to handle Wi-Fi communication, data processing, sensor interfacing, and cloud connectivity directly on the chip, significantly reducing system complexity and cost.

📊 Technical Specifications

🧑‍💻 Interface & Peripheral Support

The ESP8266EX Wi-Fi SoC supports a wide range of interfaces, enabling seamless integration with external components:

• UART – Debugging and serial communication

• SPI – High-speed peripheral interfacing

• I2C – Sensor and device communication

• SDIO – External storage and data transfer

• GPIO – General-purpose input/output control

• ADC – Analog signal measurement

• PWM – Motor control, LED dimming, and signal generation

This makes the ESP8266EX suitable for a broad range of embedded designs.

🧪 Common Applications

The ESP8266EX Wi-Fi SoC is widely used in:

• Smart home devices

• Wi-Fi enabled switches and relays

• IoT sensor nodes

• Smart lighting systems

• Wireless data logging devices

• Home automation controllers

• Wearable IoT electronics

• Cloud-connected consumer products

• Industrial IoT gateways (entry-level)

Its compact size and integrated Wi-Fi reduce BOM cost and development time.

🎓 Ideal for Education & Product Development

The ESP8266EX Wi-Fi SoC is extensively used in:

• IoT product R&D

• Embedded systems training

• Engineering college projects

• Wireless networking labs

• Startup hardware prototyping

It helps learners and developers understand Wi-Fi communication, embedded networking, power management, and IoT architecture.

⚠️ Usage Notes & Best Practices

• Operate at 3.3V only (do not apply 5V)

• Use proper RF layout and antenna matching

• Ensure stable power supply for Wi-Fi transmission

• Follow recommended PCB design guidelines

• Use proper decoupling capacitors for noise reduction

✅ Why Buy from INFYNIQS

• Genuine and quality-tested Wi-Fi SoCs

• Suitable for IoT development and production

• Ideal for bulk and OEM supply

• Trusted electronic components marketplace
