Description

GY-511 LSM303DLHC 3-Axis E-Compass Sensor Module

The GY-511 LSM303DLHC 3-axis E-Compass Sensor is a compact and powerful sensor module that combines a 3-axis accelerometer and a 3-axis magnetometer into a single board. Designed for orientation, navigation, motion sensing, and electronic compass applications, this module is widely used in Arduino, robotics, UAVs, IoT devices, and embedded systems.

Powered by the LSM303DLHC sensor IC, the GY-511 module enables precise detection of tilt, acceleration, heading direction, and magnetic field strength, making it an essential component for projects that require spatial awareness.

🔍 Key Features of GY-511 LSM303DLHC 3-Axis E-Compass Sensor

• Combines 3-axis accelerometer + 3-axis magnetometer

• True electronic compass (E-Compass) functionality

• Digital I²C interface for easy communication

• High accuracy and low power consumption

• Compact PCB suitable for space-constrained designs

• Compatible with Arduino, Raspberry Pi, ESP32, ESP8266

• Ideal for navigation and orientation applications

• Supports tilt-compensated compass calculations

• Stable performance for robotics and UAVs

⚙️ How the GY-511 LSM303DLHC Sensor Works

The GY-511 LSM303DLHC 3-axis E-Compass Sensor integrates two sensing elements:

1. 3-Axis Accelerometer
   Measures acceleration forces along X, Y, and Z axes. It helps detect:

   • Device orientation

   • Tilt angle

   • Motion and vibration

2. 3-Axis Magnetometer
   Measures Earth’s magnetic field in three dimensions, allowing:

   • Compass heading detection

   • Directional orientation

   • Magnetic field strength measurement

By combining data from both sensors, the module provides tilt-compensated compass output, ensuring accurate heading information even when the device is not perfectly level.

📊 Technical Specifications

🔌 Pin Configuration & Interface

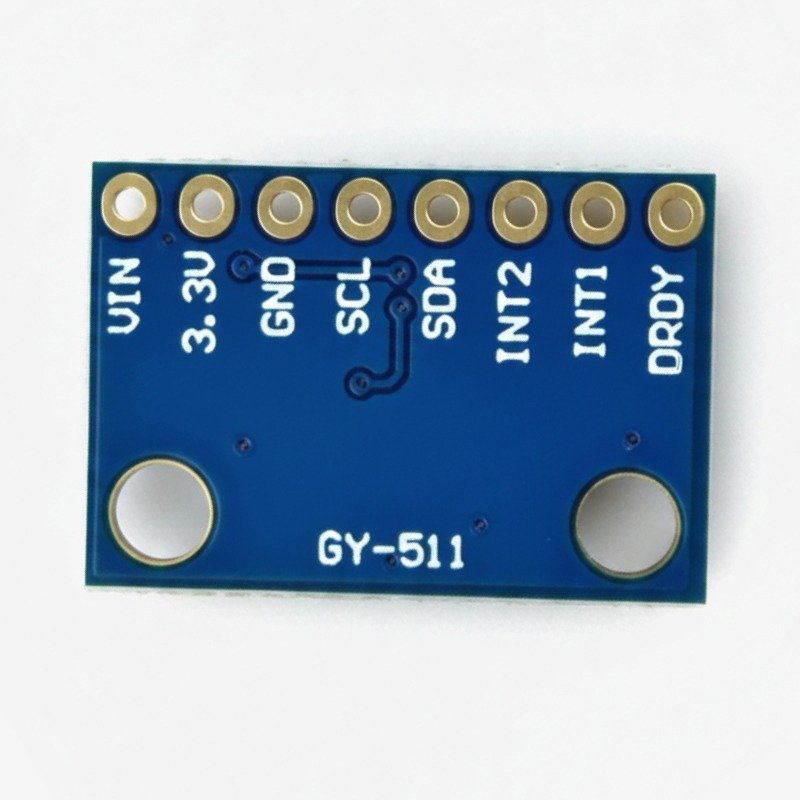

The GY-511 LSM303DLHC module typically includes the following pins:

• VCC – Power supply

• GND – Ground

• SDA – I²C Data

• SCL – I²C Clock

This simple pinout allows quick integration with most microcontrollers and development boards.

🧩 Compatibility & Integration

The GY-511 LSM303DLHC 3-axis E-Compass Sensor is fully compatible with:

• Arduino UNO / Nano / Mega

• Raspberry Pi

• ESP32 / ESP8266

• STM32 development boards

• Robotics controllers

• UAV flight controllers

It works seamlessly with popular libraries such as Adafruit LSM303, making software integration easy even for beginners.

🧪 Common Applications

This sensor module is widely used in:

• Electronic compass systems

• Robotics navigation

• Autonomous vehicles and rovers

• UAVs and drones

• Motion tracking systems

• Orientation and tilt detection

• Wearable electronics

• IoT and smart devices

• Engineering and research projects

🎓 Ideal for Education & Learning

The GY-511 LSM303DLHC 3-axis E-Compass Sensor is commonly used in:

• Engineering colleges and universities

• Robotics and IoT workshops

• STEM education programs

• Student mini and final-year projects

• Embedded systems training labs

It helps students understand sensor fusion, I²C communication, and spatial orientation concepts.

⚠️ Usage Tips & Best Practices

• Calibrate the magnetometer for accurate compass readings

• Keep away from strong magnetic sources

• Use proper sensor fusion algorithms for best results

• Ensure stable power supply

• Mount the module firmly to avoid vibration errors
