Description
Key Features of L293D Motor Control Shield
-

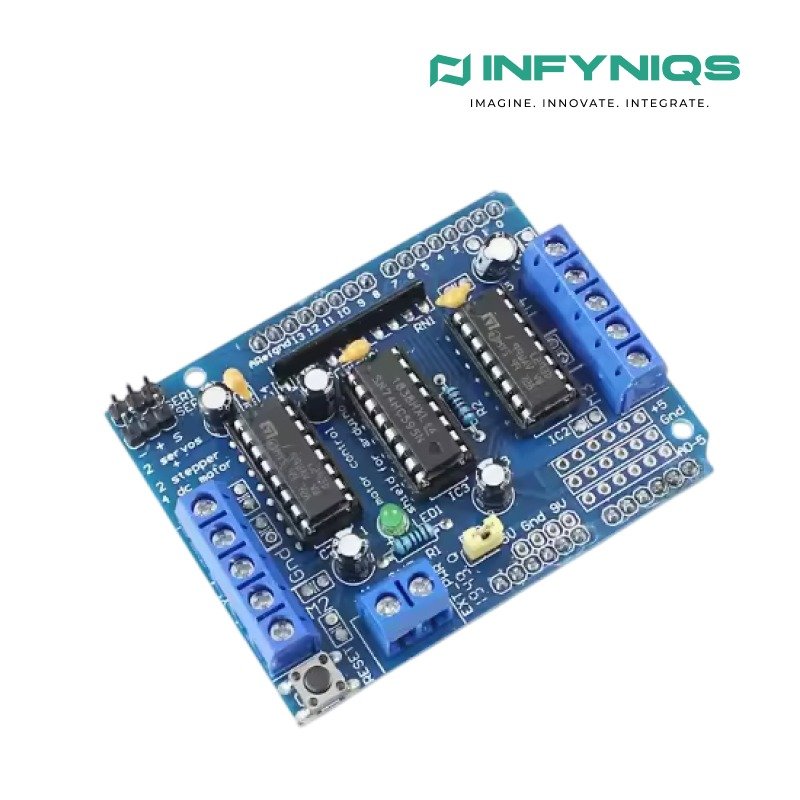

Based on the trusted L293D motor driver IC
-
Designed as an Arduino motor drive expansion board
-
Supports DC motors and stepper motors
-
Wide operating voltage range
-
Compact and lightweight shield design
-
Easy installation directly on Arduino boards
-
Stable and reliable motor control
-
Ideal for DIY, robotics, and automation projects
-
High-quality components for long-term use
How the L293D Motor Control Shield Works
The L293D Motor Control Shield uses the L293D dual H-bridge driver IC to control the direction and speed of motors. By sending logic signals from the Arduino, users can rotate motors clockwise or counter-clockwise and regulate speed using PWM (Pulse Width Modulation).
The shield simplifies motor control by eliminating the need for external driver wiring. Once mounted on the Arduino, motors can be connected directly to the onboard terminals, making project development faster and cleaner.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | L293D Motor Control Shield |
| Model Number | L293D Motor Board |
| Model | L293D |
| Type | Arduino Motor Drive Shield |
| Brand Name | FYX |
| Application | Motor Drive Expansion Board |
| Function | DIY Motor Projects |
| Operating Voltage | 4.5V – 36V |
| Rated Voltage | 5V |
| Output Current | 0.6A per channel |
| Compatible Board | Arduino |
| Size | 7 × 5.3 × 1 cm |
| Quality | High-Quality |
Compatibility & Integration
The L293D Motor Control Shield is compatible with:
-
Arduino UNO
-
Arduino Mega
-
Arduino development boards with standard shield layout
-
DC motors
-
Stepper motors
-
Motorized DIY kits
The shield design ensures seamless stacking on Arduino boards, making it beginner-friendly and ideal for rapid prototyping.
Common Applications
The L293D Motor Control Shield is widely used in:
-
Arduino-based robotics projects
-
DIY motor control systems
-
Line follower robots
-
Smart car robots
-
Educational electronics kits
-
Automation and control prototypes
-
College and university lab experiments
-
STEM and robotics workshops
Its simplicity and reliability make it one of the most popular motor shields for Arduino learning environments.
Ideal for Education & Training
The L293D Motor Control Shield is extensively used in:
-
Engineering colleges and polytechnics
-
Robotics and Arduino workshops
-
STEM education programs
-
Beginner motor control training
-
Student innovation and hobby projects
It helps learners easily understand concepts such as motor direction control, PWM speed control, and H-bridge operation.
Usage Notes & Best Practices
-
Ensure motor current does not exceed 0.6A per channel
-
Use appropriate power supply for motors
-
Avoid short circuits on motor terminals
-
Provide ventilation for continuous motor operation
-
Check motor polarity before powering the system
