Description

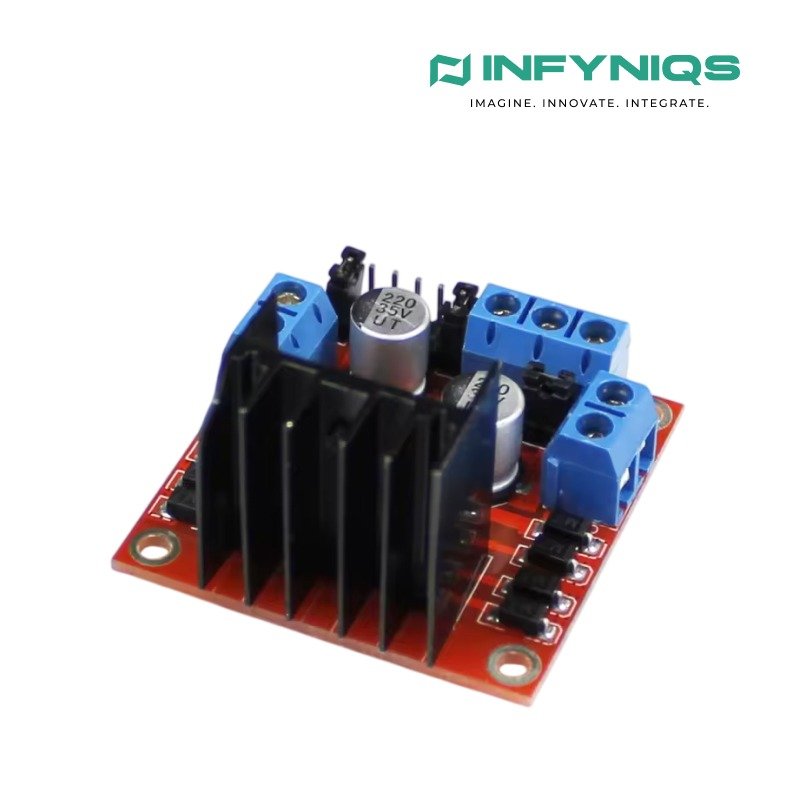

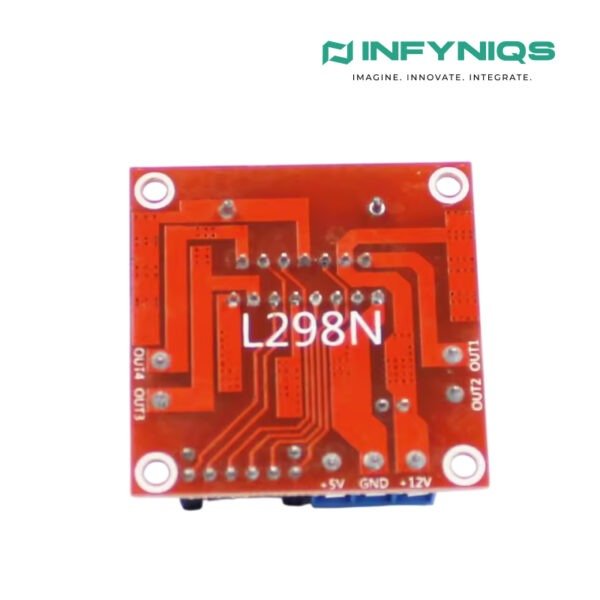

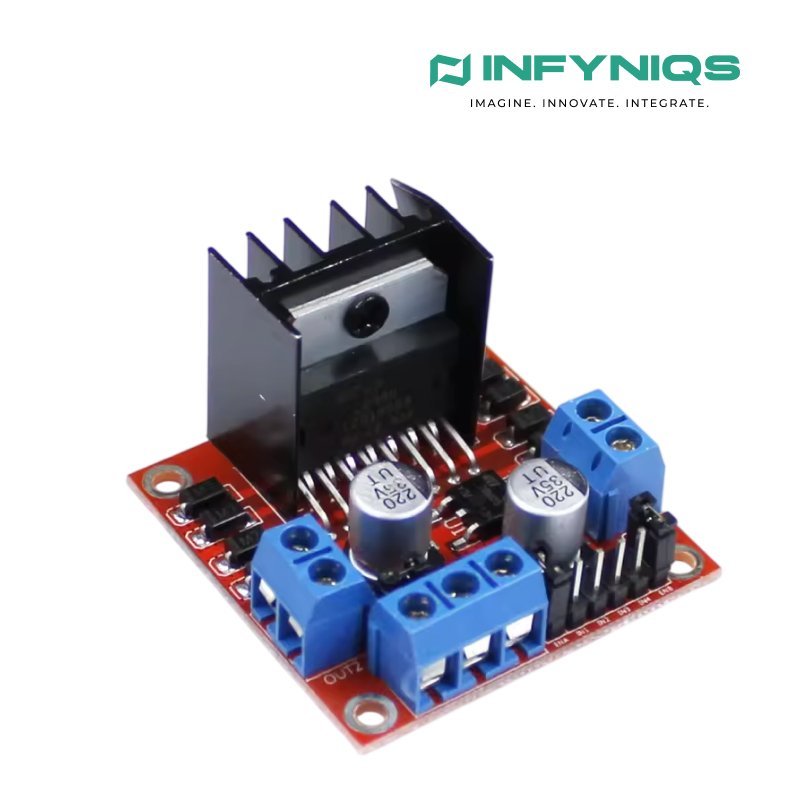

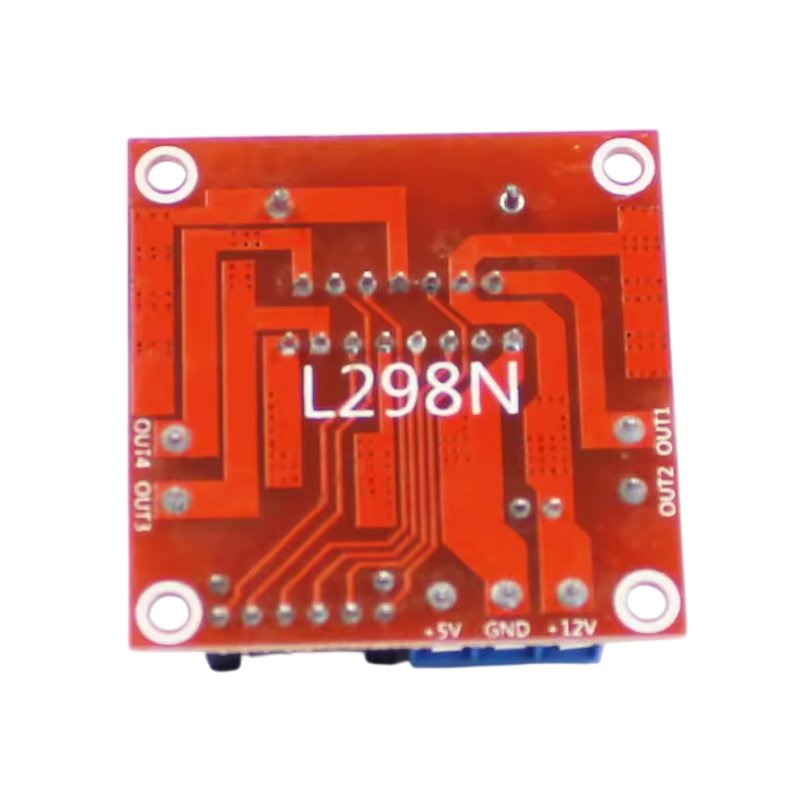

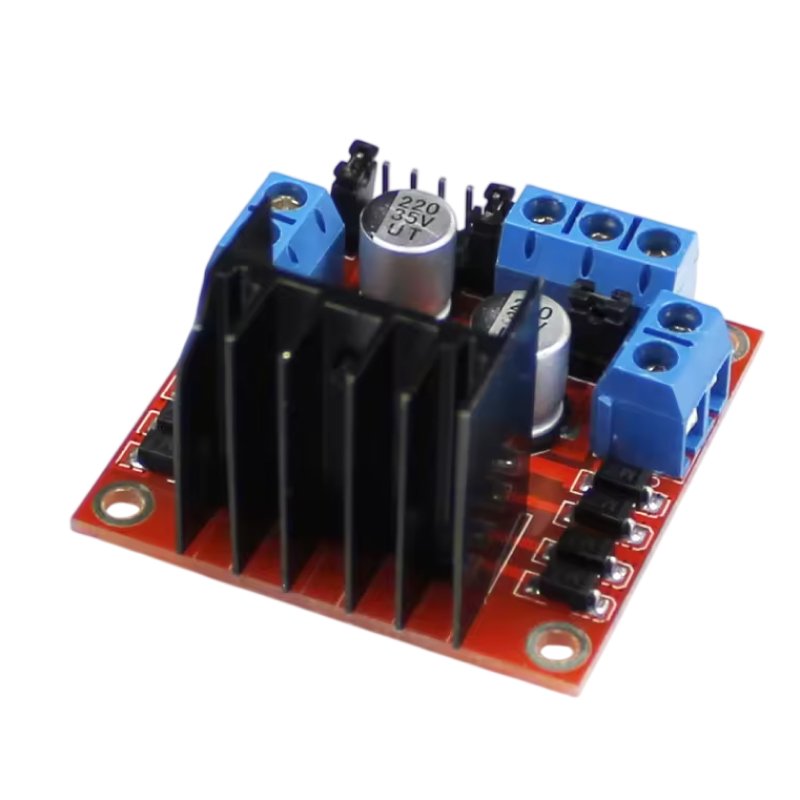

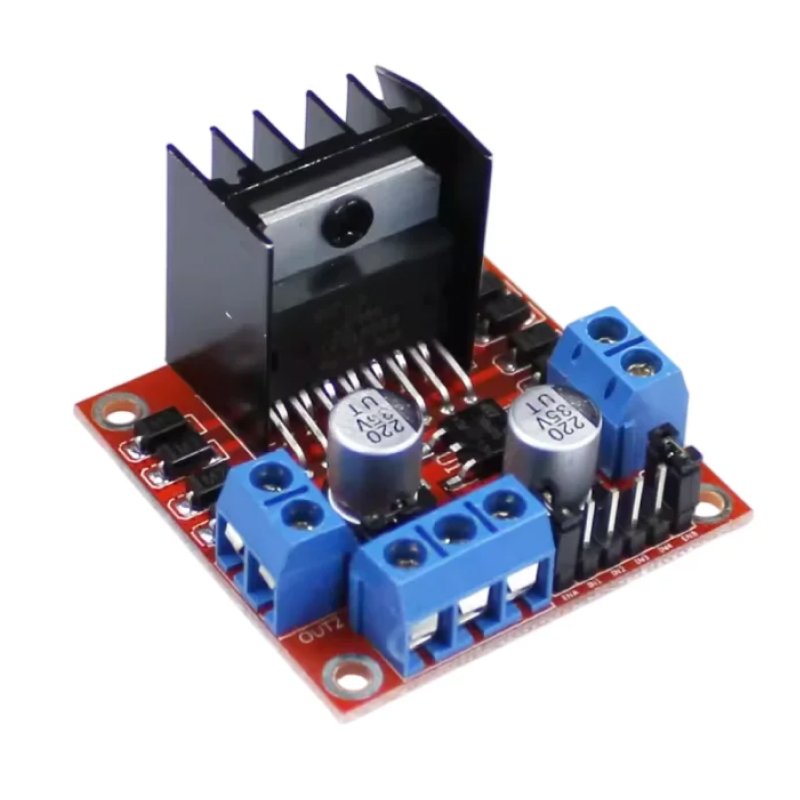

Key Features of L298N Dual H Bridge Motor Driver Module
-
Dual H-bridge motor driver configuration
-
Drives two DC motors or one stepper motor
-
Supports high motor drive voltage
-
Up to 2A current per channel (maximum)
-
Onboard 5V regulator support
-
Logic-level compatible with Arduino and microcontrollers
-
Robust design with heat sink for thermal protection
-
Compact and lightweight development board
-
Ideal for robotics, smart cars, and automation projects
How the L298N Dual H Bridge Motor Driver Module Works
The L298N Dual H Bridge Motor Driver Module works by using two H-bridge circuits that allow current to flow through a motor in both directions. By controlling the input logic pins, users can rotate motors clockwise or counterclockwise and control speed using PWM signals.
The module separates logic voltage (5V) from motor drive voltage (5V–35V), ensuring safe operation of microcontrollers while driving high-power motors. This makes the L298N Dual H Bridge Motor Driver Module highly flexible and safe for experimentation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | L298N Dual H Bridge Motor Driver Module |
| Model Number | L298N |
| Brand Name | FYX |
| Mounting Type | Module |
| Type | Motor Drive Module |
| Drive Configuration | Dual H Bridge |
| Drive Current | 2A (Max per single bridge) |
| Peak Drive Current (IO) | 2A |
| Logic Voltage | 5V |
| Drive Voltage | 5V – 35V |
| Logic Operating Current | 0 – 36 mA |
| Maximum Power Consumption | 20W |
| Storage Temperature | -25°C to +130°C |
| Driver Board Size | 48 mm × 43 mm × 33 mm |
| Driver Board Weight | 33 g |
| Package / Case | Module |
Compatibility & Integration
The L298N Dual H Bridge Motor Driver Module is fully compatible with:
-
Arduino UNO / Nano / Mega
-
ESP8266 & ESP32
-
Raspberry Pi (with logic level matching)
-
STM32 microcontrollers
-
Smart car robot controllers
-
DIY robotics platforms
-
Automation control systems
Its standard pin layout and widespread library support make integration quick and easy.
Common Applications
The L298N Dual H Bridge Motor Driver Module is widely used in:
-
Smart car robots
-
Line follower and obstacle avoidance robots
-
DC motor speed and direction control
-
Stepper motor control projects
-
Robotics competitions
-
Home automation mechanisms
-
Industrial motor control prototypes
-
Educational electronics labs
Because it can drive two motors independently, it is ideal for differential drive robots.
Ideal for Education & Training
This module is extensively used in:
-
Engineering colleges and polytechnic labs
-
Robotics and IoT workshops
-
STEM education kits
-
Arduino motor control training
-
Student innovation and final-year projects
Its simple working principle makes it perfect for learning motor control fundamentals.
Usage Notes & Best Practices
-
Use external power supply for motors
-
Ensure proper heat dissipation at high loads
-
Do not exceed maximum current limits
-
Use PWM signals for smooth speed control
-
Avoid short circuits on motor terminals
Why Buy from INFYNIQS
-
Genuine FYX motor driver modules
-
Quality-tested for performance and reliability
-
Suitable for bulk educational and industrial supply
-
Trusted electronics components marketplace
-
Technical support for robotics and motor control
