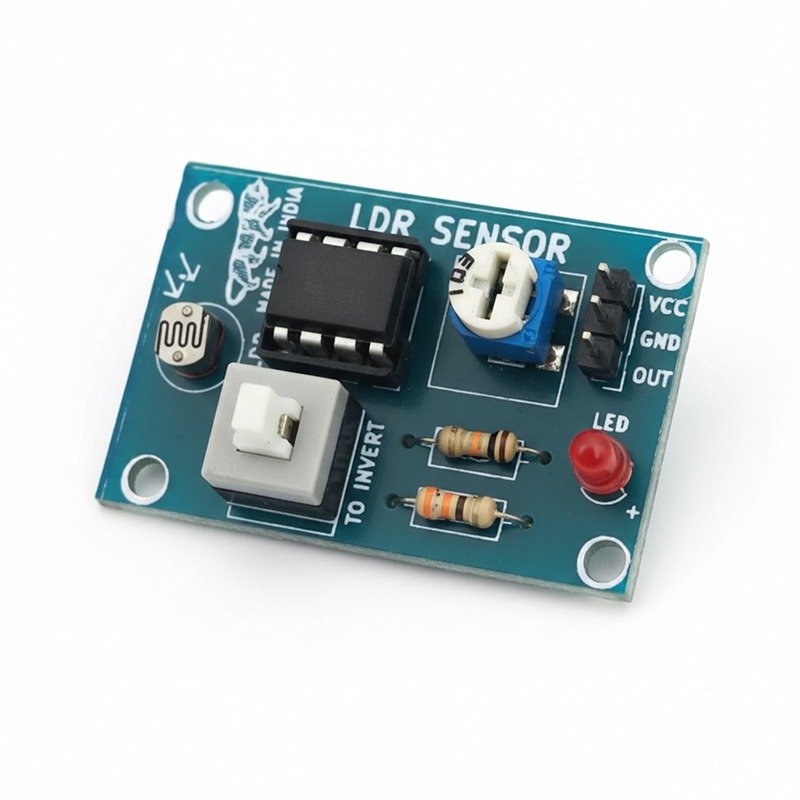

LDR Light Sensor Module with Day/Night Invert Logic for Arduino & IoT

Description

The LDR Light Sensor Module with Day/Night Invert Logic is a compact and reliable light detection module designed to sense ambient light intensity and automatically switch outputs based on day or night conditions. This module is ideal for automatic lighting systems, smart home automation, solar-based projects, Arduino projects, IoT systems, robotics, and embedded electronics applications.

Equipped with a Light Dependent Resistor (LDR) and an onboard comparator circuit (typically LM393), this module provides stable and accurate digital output. The key advantage of this version is its day/night invert logic functionality, allowing flexible output control depending on your project requirements.

🔍 Key Features of LDR Light Sensor Module with Day/Night Invert Logic

• Integrated Light Dependent Resistor (LDR)

• Day/Night invert logic functionality

• Adjustable sensitivity using potentiometer

• Digital output (DO)

• Stable comparator-based design

• LED power indicator

• LED output status indicator

• Low power consumption

• Easy 3-pin interface

• Compact PCB design

• Compatible with Arduino & ESP boards

⚙️ How the LDR Light Sensor Module Works

The LDR Light Sensor Module with Day/Night Invert Logic works by detecting changes in ambient light intensity. The resistance of the LDR varies depending on light exposure:

• In bright light → resistance decreases

• In darkness → resistance increases

This change in resistance is processed by the onboard comparator circuit. When the light level crosses a preset threshold (adjustable via potentiometer), the module switches its digital output.

The invert logic feature allows you to configure the output behavior:

• Normal Mode: Output HIGH during darkness

• Invert Mode: Output HIGH during daylight

This flexibility makes it ideal for different automation needs without modifying external circuits.

📊 Technical Specifications

🔌 Pin Configuration

The module typically includes:

• VCC – 3.3V or 5V supply

• GND – Ground

• OUT – Digital output signal

This simple interface allows direct connection to microcontrollers.

🏠 Common Applications

The LDR Light Sensor Module with Day/Night Invert Logic is widely used in:

• Automatic street lighting systems

• Smart garden lights

• Solar lighting controllers

• Smart home automation

• Light-based alarm systems

• Robotics light detection

• IoT remote monitoring

• Energy-saving lighting projects

• Industrial light detection systems

🧩 Compatibility & Integration

This module is compatible with:

• Arduino UNO / Nano / Mega

• ESP8266 / ESP32

• Raspberry Pi (via GPIO)

• STM32 boards

• IoT development kits

• Relay modules for automatic switching

It can directly control a 5V relay module for automatic switching of AC appliances.

🎓 Ideal for Education & Prototyping

The LDR Light Sensor Module with Day/Night Invert Logic is perfect for:

• Engineering college projects

• IoT and robotics workshops

• Embedded system labs

• STEM learning programs

• School science experiments

It helps students understand:

• Light sensing principles

• Comparator circuit operation

• Digital logic output

• Automation concepts

🔒 Usage Tips & Best Practices

• Adjust sensitivity using onboard potentiometer

• Avoid placing sensor near direct artificial light if not required

• Use proper shielding for outdoor installations

• Pair with relay module for high-power control

• Ensure stable power supply

📦 Package Includes

• 1 × LDR Light Sensor Module with Day/Night Invert Logic
