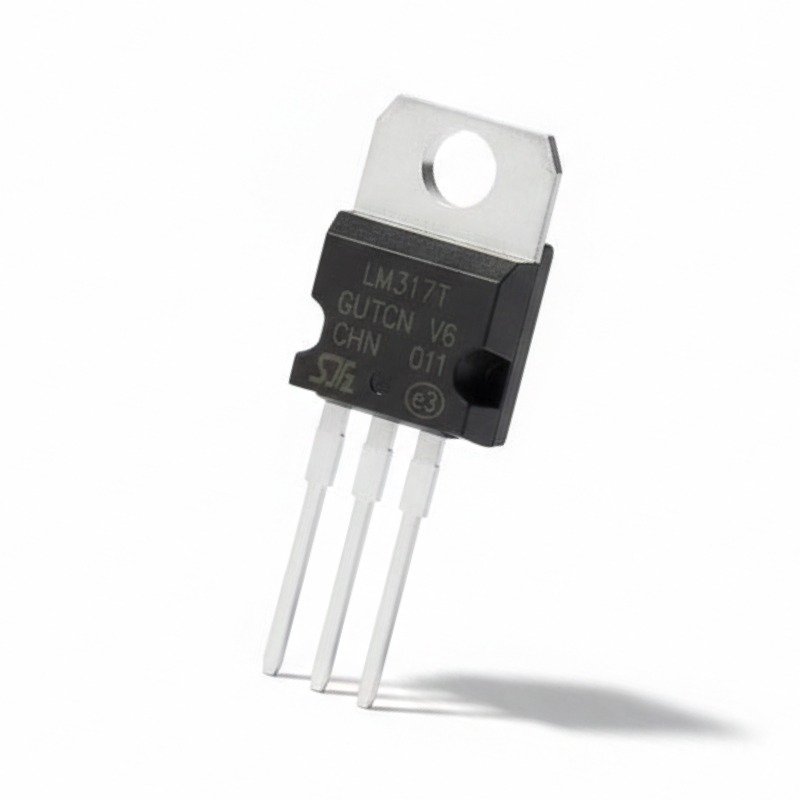

LM317T Adjustable Voltage Regulator IC | Variable Linear Regulator TO-220

Description

The LM317T Adjustable Voltage Regulator IC is a highly reliable and widely used linear voltage regulator designed to provide a stable and adjustable DC output voltage. With an output voltage range from 1.25V up to 37V and output current capability of up to 1.5A (with proper heat sinking), the LM317T is a go-to solution for variable power supplies, battery chargers, Arduino projects, and general-purpose electronics applications.

Housed in a robust TO-220 package, the LM317T offers excellent thermal performance and easy mounting, making it suitable for both DIY electronics and industrial power regulation designs.

🔍 Key Features of LM317T Adjustable Voltage Regulator IC

• Adjustable output voltage from 1.25V to 37V

• Output current up to 1.5A

• Internal thermal overload protection

• Short-circuit current limiting

• Safe operating area (SOA) protection

• High ripple rejection

• Stable and low noise output

• Simple configuration using two resistors

• Robust TO-220 package

• Widely available and cost-effective

• Ideal for linear regulated power supplies

⚙️ How the LM317T Adjustable Voltage Regulator Works

The LM317T Adjustable Voltage Regulator IC works by maintaining a constant 1.25V reference voltage between its output and adjust pins. By selecting appropriate external resistors, users can precisely control the output voltage.

This simple yet powerful design allows the LM317T to:

• Replace fixed voltage regulators

• Provide flexible voltage outputs

• Maintain stable regulation even under load changes

Because it is a linear regulator, the LM317T offers low noise and clean output voltage, making it ideal for sensitive analog and digital circuits.

📊 Technical Specifications

(Exact limits depend on operating conditions and heatsinking.)

🔌 Pin Configuration (TO-220)

The LM317T pinout is simple and standard:

1. Adjust (ADJ) – Voltage setting input

2. Output (OUT) – Regulated output voltage

3. Input (IN) – Unregulated input voltage

⚠️ Always use proper heat sinking when operating at higher current or voltage drop.

🧩 Compatibility & Integration

The LM317T Adjustable Voltage Regulator IC is compatible with:

• Arduino and microcontroller power supplies

• Battery charging circuits

• Variable bench power supplies

• Audio amplifier power rails

• Sensor and logic power regulation

• Robotics and automation systems

• DIY electronics and maker projects

It can easily replace multiple fixed regulators using a single adjustable design.

🧪 Common Applications

The LM317T is widely used in:

• Adjustable DC power supplies

• Battery charger circuits

• Voltage regulation for Arduino & ESP32

• Motor driver power regulation

• Linear current regulators

• LED driver circuits

• Educational electronics kits

• Prototyping and testing setups

🎓 Ideal for Education & Prototyping

The LM317T Adjustable Voltage Regulator IC is a staple component in:

• Engineering colleges and electronics labs

• Power electronics training

• Arduino & embedded systems workshops

• Student mini and final-year projects

• DIY and maker communities

It helps learners understand linear regulation, voltage reference concepts, and thermal management.

⚠️ Usage Tips & Best Practices

• Ensure input voltage is always higher than output voltage

• Use a heat sink for currents above 500mA

• Add recommended input and output capacitors

• Avoid excessive voltage drop to reduce heat

• Do not exceed maximum ratings

• Use proper PCB traces for high current paths

📦 Package Includes

• 1 × LM317T Adjustable Voltage Regulator IC (TO-220)

✅ Why Buy from INFYNIQS

• Genuine and quality-tested ICs

• Ideal for DIY, education & industrial use

• Bulk and institutional supply available

• Trusted electronics components marketplace

• Technical support for power electronics
