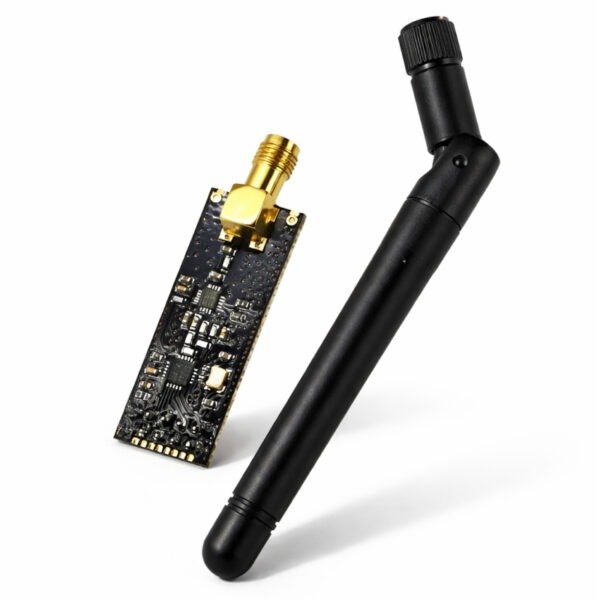

nRF24L01+PA+LNA Wireless 2.4GHz RF Transceiver Module with SMA Antenna

Description

nRF24L01+PA+LNA Wireless 2.4GHz RF Transceiver Module with SMA Antenna

The nRF24L01+PA+LNA Wireless RF Transceiver Module is a high-performance 2.4GHz ISM band communication module designed for long-range, low-power, and reliable wireless data transmission. Based on the popular Nordic nRF24L01+ chipset, this enhanced version integrates a Power Amplifier (PA) and Low Noise Amplifier (LNA) to significantly extend communication range compared to the standard nRF24L01 module.

Equipped with an external SMA antenna connector, this module is capable of achieving communication distances up to 800–1000 meters (line-of-sight) under ideal conditions. It is widely used in Arduino projects, IoT networks, wireless sensor systems, robotics, home automation, and industrial telemetry applications.

🔍 Key Features of nRF24L01+PA+LNA Wireless RF Transceiver Module

• Operates in the 2.4GHz ISM frequency band

• Based on nRF24L01+ transceiver IC

• Integrated Power Amplifier (PA) for extended range

• Integrated Low Noise Amplifier (LNA) for improved reception

• SMA antenna connector for external antenna

• Supports SPI communication

• Ultra-low power consumption

• High data rate up to 2 Mbps

• Multi-channel and multi-pipe communication

• Excellent anti-interference capability

• Compact and robust module design

⚙️ How the nRF24L01+PA+LNA Module Works

The nRF24L01+PA+LNA Wireless RF Transceiver Module functions as both a transmitter and receiver, enabling bidirectional wireless communication. It communicates with a microcontroller via the SPI interface, allowing fast and efficient data exchange.

• The PA (Power Amplifier) boosts the transmitted signal strength, enabling long-distance communication.

• The LNA (Low Noise Amplifier) enhances weak incoming signals, improving sensitivity and reliability.

• The module uses GFSK modulation and supports automatic packet handling, CRC error detection, and retransmission for stable communication.

This combination makes the module ideal for environments where long range and reliable data transfer are required.

📊 Technical Specifications

🔌 Pin Configuration & Interface

The nRF24L01+PA+LNA module uses an SPI interface with the following typical pins:

• VCC – 3.3V power supply

• GND – Ground

• CE – Chip Enable

• CSN – Chip Select

• SCK – SPI Clock

• MOSI – SPI Data In

• MISO – SPI Data Out

• IRQ – Interrupt Output

⚠️ Important: The module operates at 3.3V only. Direct connection to 5V will permanently damage the module.

🧩 Compatibility & Integration

The nRF24L01+PA+LNA Wireless RF Transceiver Module is compatible with:

• Arduino UNO / Nano / Mega

• ESP8266 / ESP32 (with level matching)

• STM32 development boards

• Raspberry Pi

• Custom embedded systems

• IoT sensor nodes

It works seamlessly with popular libraries such as RF24, making firmware development simple and beginner-friendly.

🧪 Common Applications

This long-range RF module is widely used in:

• Wireless sensor networks

• IoT and smart agriculture systems

• Remote monitoring and telemetry

• Robotics communication

• Home automation

• Wireless control systems

• Industrial data acquisition

• Educational RF communication labs

Its reliability and extended range make it ideal for outdoor and industrial applications.

🎓 Ideal for Education & Professional Use

The nRF24L01+PA+LNA Wireless RF Transceiver Module is extensively used in:

• Engineering colleges and universities

• IoT and embedded systems training

• Robotics competitions

• Research and development labs

• Startup product prototyping

It helps learners understand RF communication, SPI protocol, networking concepts, and wireless system design.

⚠️ Usage Tips & Best Practices

• Always use a stable 3.3V power supply (preferably with a capacitor)

• Do not power directly from Arduino 3.3V pin for PA version

• Use a 10µF–47µF capacitor near VCC for stability

• Keep antenna vertical for best range

• Avoid metal enclosures near antenna

• Use proper grounding and PCB layout
