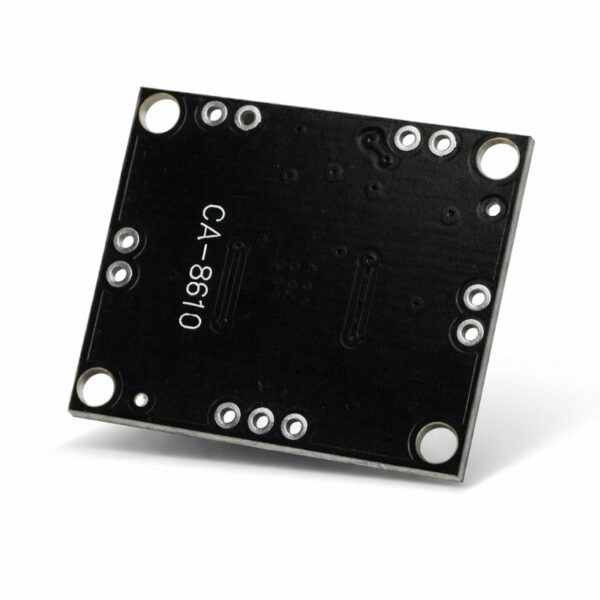

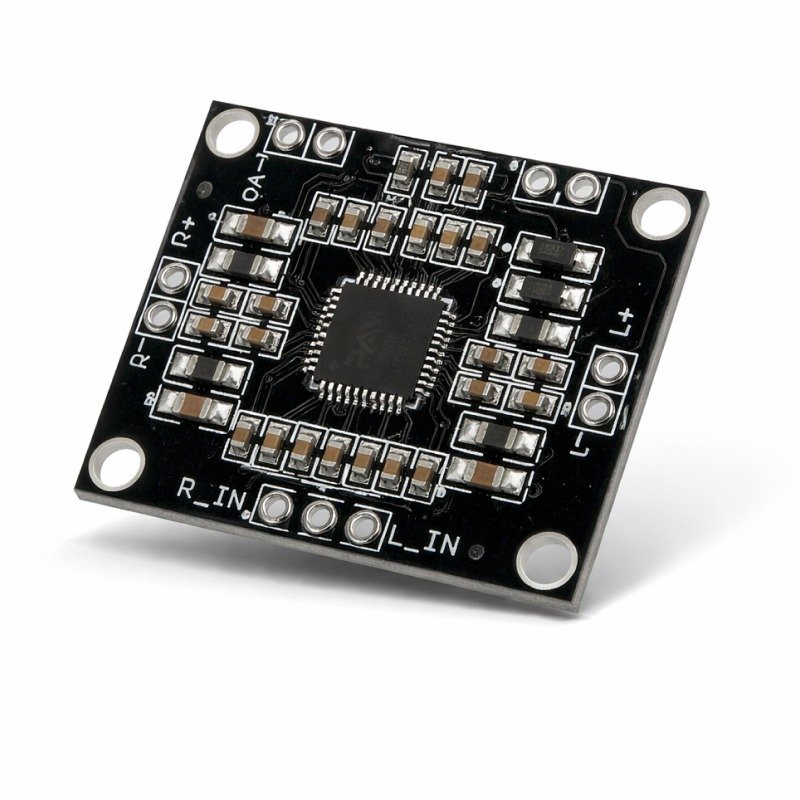

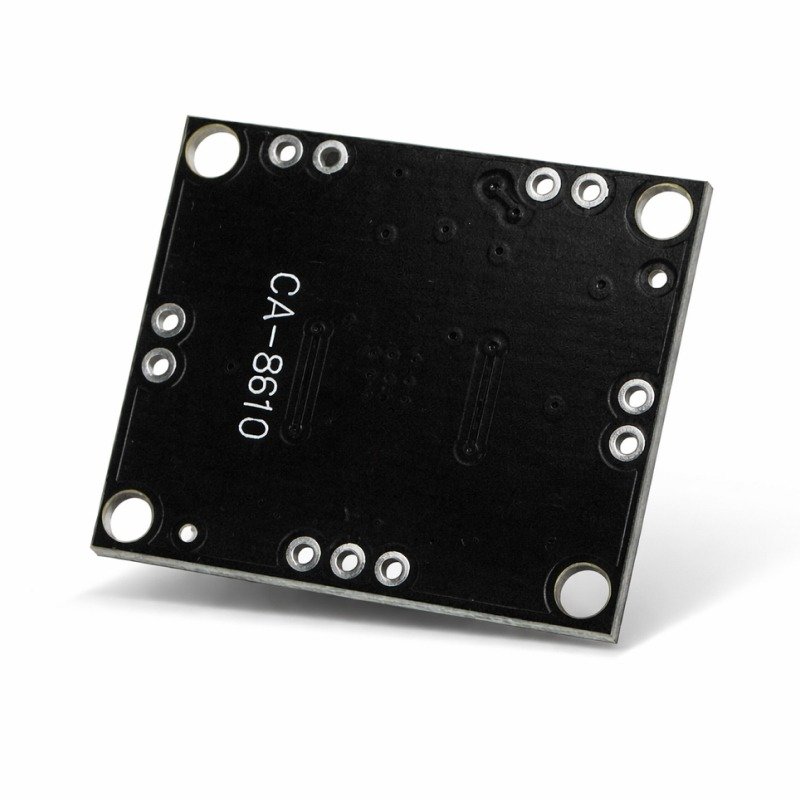

PAM8610 Digital Stereo Class-D Audio Amplifier Board 2×10W

Description

The PAM8610 Digital Stereo Class-D Audio Amplifier Board is a compact and high-efficiency stereo amplifier module capable of delivering 2×10W output power with excellent sound quality. Designed using the PAM8610 Class-D amplifier IC, this board provides powerful audio amplification while maintaining low power consumption and minimal heat generation.

This amplifier module is ideal for DIY audio systems, Bluetooth speakers, portable speaker builds, Arduino audio projects, multimedia systems, and embedded electronics applications.

Thanks to its compact design and simple wiring interface, the PAM8610 Digital Stereo Class-D Audio Amplifier Board is widely used by electronics hobbyists, audio enthusiasts, and engineers who want to build small but powerful audio amplifiers.

🔧 Key Features

• Class-D digital audio amplifier

• 2×10W stereo output power

• High efficiency (up to ~90%)

• Low heat generation

• Compact PCB design

• High signal-to-noise ratio

• Simple input and output connections

• Supports stereo audio input

• Low standby current

• Ideal for DIY audio systems

⚙️ How the PAM8610 Audio Amplifier Works

The PAM8610 Digital Stereo Class-D Audio Amplifier Board uses a switching amplifier design rather than traditional linear amplification. Class-D amplifiers operate by rapidly switching output transistors on and off to produce amplified audio signals.

Advantages of Class-D amplifiers include:

• Higher efficiency

• Less power loss

• Smaller heat dissipation

• Compact circuit design

This makes the PAM8610 module perfect for battery-powered audio devices and portable speaker systems.

📊 Technical Specifications

🔌 Pin Configuration

Typical connections on the PAM8610 amplifier board include:

Power Input

• VCC – Power supply (7V–15V)

• GND – Ground

Audio Input

• L-IN – Left audio input

• R-IN – Right audio input

• GND – Audio ground

Speaker Output

• L+ / L- – Left speaker output

• R+ / R- – Right speaker output

This makes it easy to connect speakers directly to the module.

🔊 Applications

The PAM8610 Digital Stereo Class-D Audio Amplifier Board is widely used in:

• DIY Bluetooth speaker systems

• Portable speaker projects

• Home audio amplifier circuits

• Arduino audio output projects

• Multimedia speaker systems

• Embedded audio devices

• Car audio experiments

• Electronic music projects

• Educational electronics labs

• Audio signal amplification circuits

Because of its compact size and high power output, it is perfect for small audio devices and portable sound systems.

🧩 Compatibility

This amplifier board works well with:

• Bluetooth audio modules

• Arduino boards

• Raspberry Pi audio output

• MP3 player modules

• Audio DAC modules

• Mobile phone audio outputs

• Laptop audio output

• Embedded audio systems

It can be integrated easily into custom speaker builds and DIY audio amplifiers.

🎓 Ideal for Learning Electronics & Audio Projects

The PAM8610 Digital Stereo Class-D Audio Amplifier Board is commonly used in:

• Engineering college projects

• Audio electronics workshops

• DIY speaker builds

• Arduino audio experiments

• Robotics sound systems

• Maker community projects

Students can learn concepts such as:

• Audio signal amplification

• Class-D amplifier technology

• Speaker driver circuits

• Power efficiency in amplifiers

⚠️ Usage Tips

• Use 7V–15V DC power supply

• Recommended 12V for best performance

• Use 4Ω or 8Ω speakers

• Ensure proper heat dissipation

• Avoid short circuiting speaker outputs

• Use shielded cables for audio input

These tips help maintain sound quality and module reliability.
