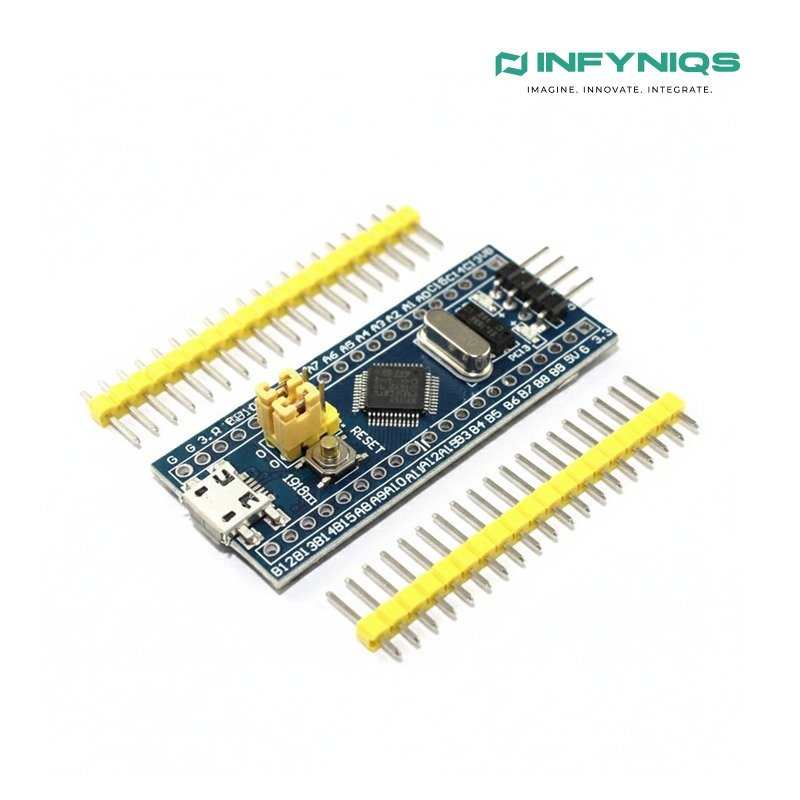

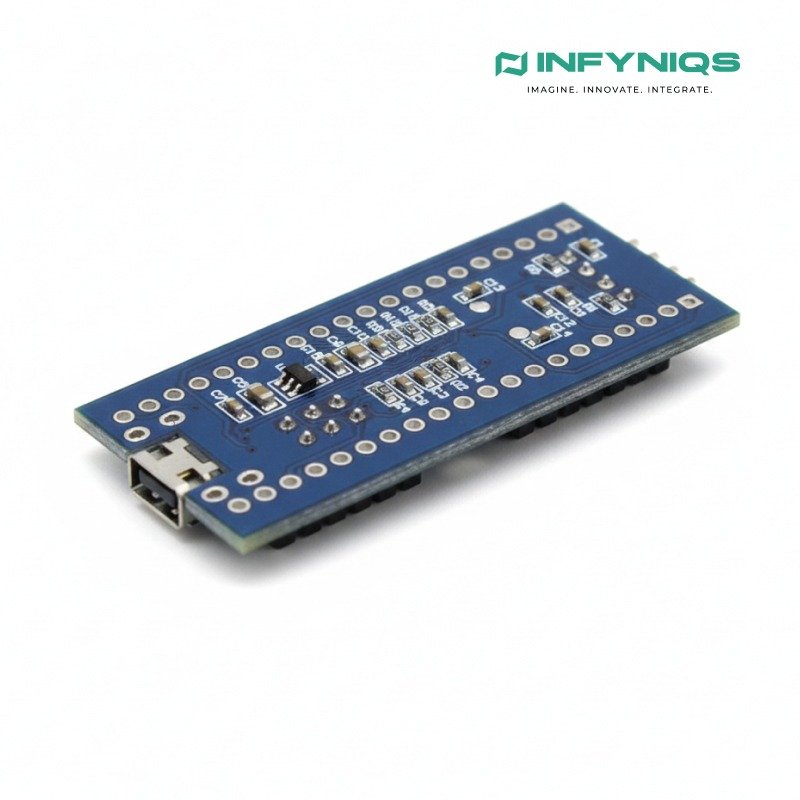

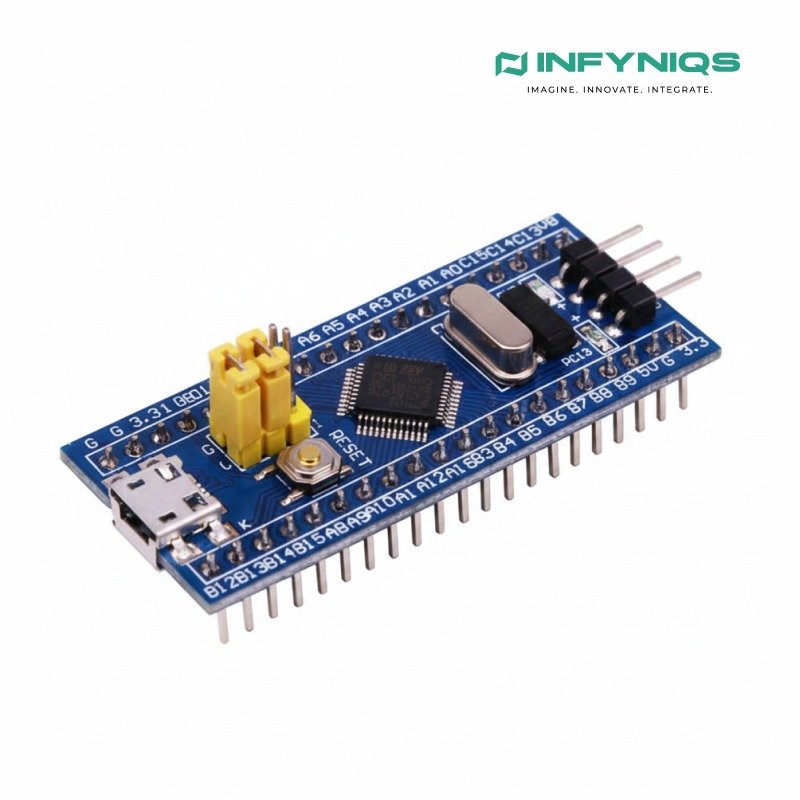

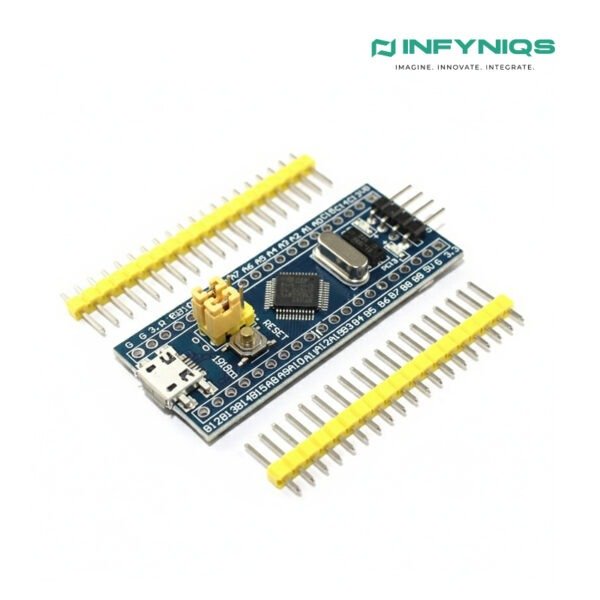

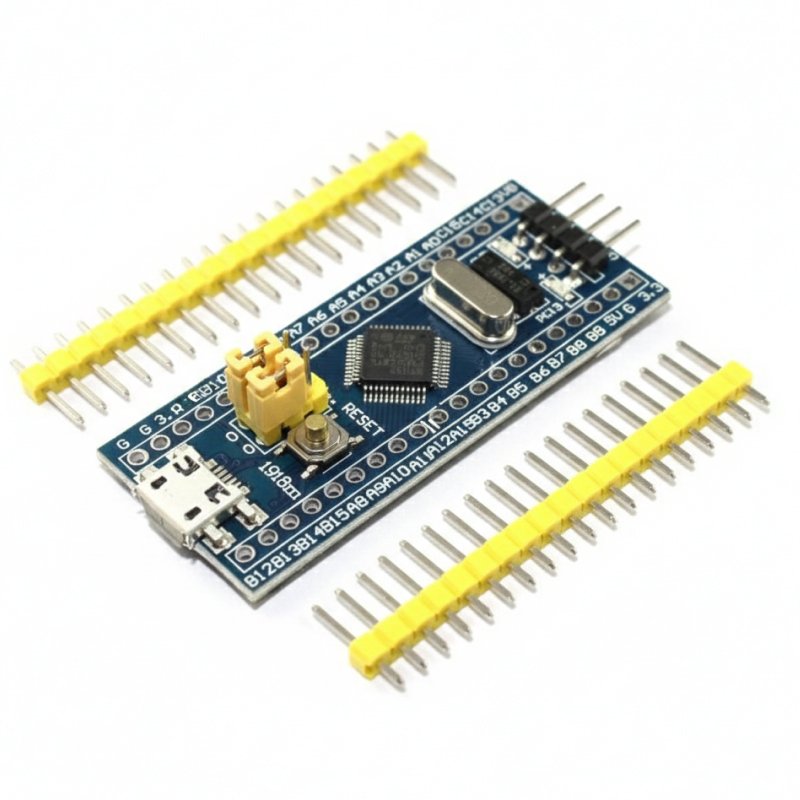

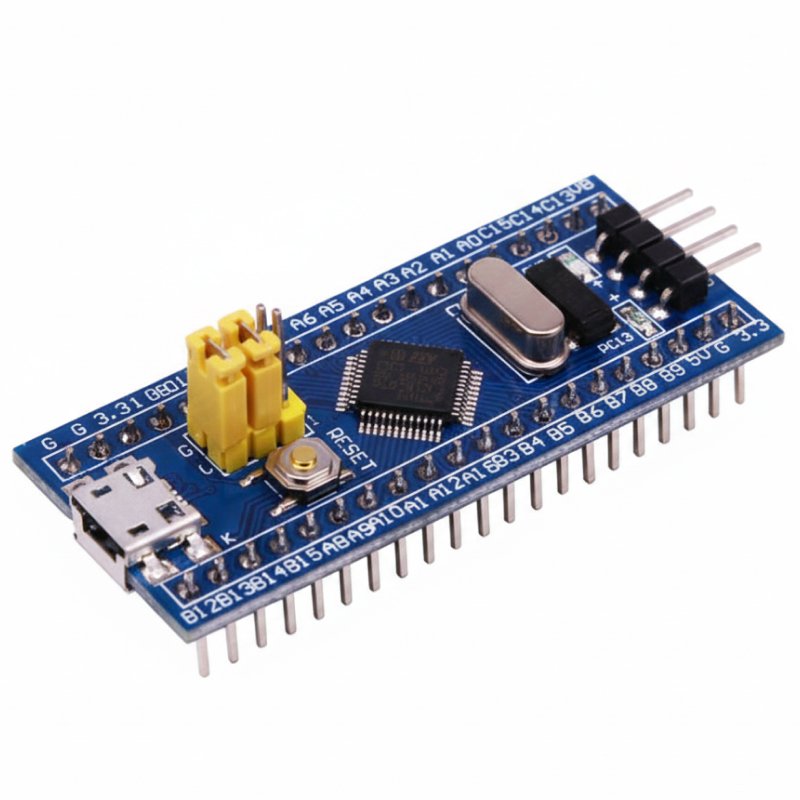

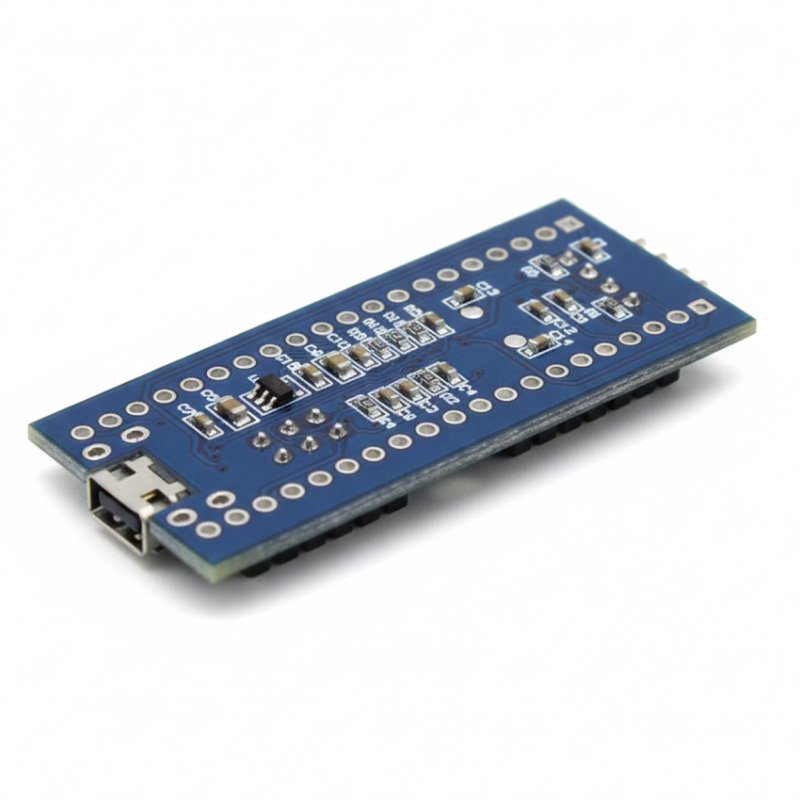

STM32F103C8T6 Minimum System Board

Description

🔍 Key Features of STM32F103C8T6 Minimum System Board

• Based on STM32F103C8T6 microcontroller

• ARM 32-bit Cortex-M3 CPU

• Maximum operating frequency of 72 MHz

• 64 KB Flash memory

• 20 KB SRAM

• Wide operating voltage range 2.0V – 3.6V

• Supports SWD (Serial Wire Debug) interface

• Rich set of GPIO pins

• Onboard crystal oscillators

• Compact and breadboard-friendly form factor

• Low power consumption

• Suitable for professional and educational use

⚙️ How the STM32F103C8T6 Minimum System Board Works

The STM32F103C8T6 Minimum System Board integrates a powerful 32-bit ARM Cortex-M3 processor capable of handling complex real-time tasks. It supports multiple communication interfaces and peripherals, making it suitable for advanced embedded systems.

Programming and debugging are performed using SWD (Serial Wire Debug), which allows fast flashing, debugging, and real-time monitoring using tools such as ST-Link, J-Link, or compatible debuggers. Once programmed, the board can operate independently as a standalone controller.

📊 Technical Specifications

🧑‍💻 Programming & Software Support

The STM32F103C8T6 Minimum System Board supports multiple development environments:

• STM32CubeIDE

• Keil µVision

• IAR Embedded Workbench

• PlatformIO

• Arduino IDE (via STM32 core)

It supports programming via ST-Link, USB bootloader (with configuration), or serial interface.

🧪 Common Applications

The STM32F103C8T6 Minimum System Board is widely used in:

• Embedded systems development

• Industrial control prototypes

• IoT devices and gateways

• Motor control applications

• Sensor data acquisition systems

• Robotics and automation

• Communication protocol testing

• Educational ARM learning projects

• Real-time control systems

Its performance makes it suitable for both learning and production-grade prototyping.

🎓 Ideal for Education & Training

This board is extensively used in:

• Engineering colleges and universities

• Embedded systems training institutes

• ARM microcontroller workshops

• Robotics and IoT courses

• Final-year student projects

Students can easily learn ARM architecture, low-level programming, peripheral control, and real-time embedded concepts using this board.

⚠️ Usage Notes & Best Practices

• Use 3.3V logic levels only

• Use ST-Link for reliable debugging

• Avoid applying more than 3.6V to I/O pins

• Ensure correct boot pin configuration

• Use proper power supply filtering for stable operation

📦 Package Includes

• 1 × STM32F103C8T6 Minimum System Board

✅ Why Buy from INFYNIQS

• Genuine and tested STM32 boards

• High-quality manufacturing

• Ideal for educational and professional use

• Suitable for bulk and institutional supply

• Trusted electronic components platform

• Technical support for STM32 development
