Description

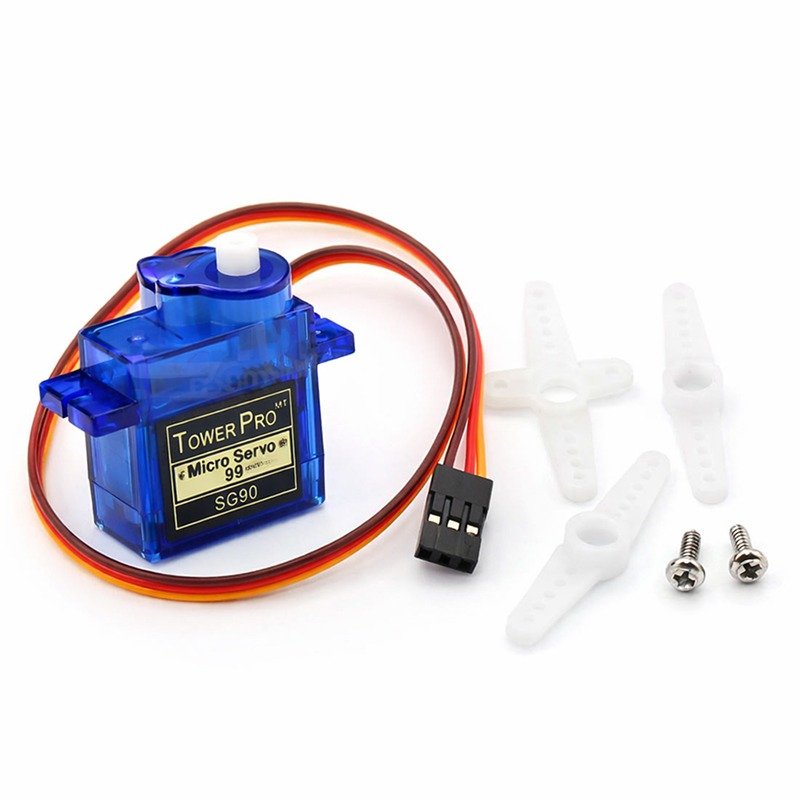

Tower Pro SG90 Servo Motor – 9g Mini / Micro Servo Motor
The Tower Pro SG90 Servo Motor is one of the most popular and widely used 9g mini micro servo motors in electronics, robotics, and DIY automation projects. Known for its compact size, lightweight design, precise angular control, and reliable performance, the SG90 servo is an excellent choice for beginners, students, hobbyists, and professionals alike.
Designed for position control applications, the Tower Pro SG90 Servo Motor can rotate to specific angles based on control signals, making it ideal for robot arms, small mechanisms, RC models, pan-tilt camera systems, and Arduino-based projects.
🔍 Key Features of Tower Pro SG90 Servo Motor
-
Mini / micro servo motor (9 grams)
-
Compact and lightweight design
-
Precise position control (0°–180°)
-
Compatible with Arduino, Raspberry Pi, ESP32, ESP8266
-
Fast response and stable operation
-
Plastic gears for quiet performance
-
Operates on low voltage
-
Ideal for robotics, DIY, and educational projects
-
Easy to interface using PWM signals
-
Trusted Tower Pro quality
⚙️ How the Tower Pro SG90 Servo Motor Works
The Tower Pro SG90 Servo Motor operates using PWM (Pulse Width Modulation) control signals. Unlike DC motors that rotate continuously, a servo motor rotates to a specific angle based on the width of the input pulse.
-
A pulse width of ~1 ms moves the servo to 0°
-
A pulse width of ~1.5 ms moves it to 90°
-
A pulse width of ~2 ms moves it to 180°
This precise control makes the SG90 ideal for applications where accurate positioning is required.
📊 Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Tower Pro SG90 Servo Motor |
| Servo Type | Mini / Micro Servo |
| Weight | 9 grams |
| Operating Voltage | 4.8V – 6V |
| Control Signal | PWM |
| Rotation Angle | 0° – 180° |
| Torque | ~1.8 kg·cm (at 4.8V) |
| Speed | 0.1 sec / 60° (approx.) |
| Gear Type | Plastic |
| Connector | 3-pin (Brown/Red/Orange) |
| Dimensions | Approx. 23 × 12 × 29 mm |
| Application | Robotics, Arduino, RC, DIY |
| Condition | Brand New |
| Quality | High Performance |
🔌 Pin Configuration
The Tower Pro SG90 Servo Motor uses a standard 3-wire interface:
-
Brown – Ground (GND)
-
Red – Power (+5V)
-
Orange – Signal (PWM)
This standard pinout makes it plug-and-play with most microcontroller boards.
🧩 Compatibility & Integration
The Tower Pro SG90 Servo Motor is fully compatible with:
-
Arduino UNO / Nano / Mega
-
Raspberry Pi (with PWM support)
-
ESP8266 / ESP32
-
Servo driver boards (PCA9685, etc.)
-
RC receivers
-
Robotics kits and DIY controllers
It is commonly powered directly from the 5V rail or an external power supply.
🧪 Common Applications
The SG90 servo motor is widely used in:
-
Arduino and microcontroller projects
-
Small robot arms and grippers
-
Line-following and obstacle-avoiding robots
-
Pan-tilt camera mounts
-
RC cars, planes, and boats
-
DIY automation systems
-
Educational STEM kits
-
Mechanical linkages and prototypes
Its small size and affordability make it ideal for rapid prototyping.
🎓 Ideal for Education & Learning
The Tower Pro SG90 Servo Motor is extensively used in:
-
Engineering colleges and universities
-
Robotics and IoT workshops
-
School STEM programs
-
Arduino beginner kits
-
Student mini and final-year projects
It helps students understand PWM control, motor positioning, and embedded system fundamentals.
⚠️ Usage Tips & Best Practices
-
Do not stall the servo at end positions
-
Use external power supply for multiple servos
-
Avoid excessive mechanical load
-
Calibrate servo angles in software
-
Do not exceed recommended voltage
-
Secure mounting for accurate movement
✅ Why Buy from INFYNIQS
-
Genuine Tower Pro compatible servos
-
Quality-tested for smooth operation
-
Ideal for DIY, education & robotics
-
Bulk and institutional supply available
-
Trusted electronics & robotics marketplace
